kindling

Package overview

Title: Higher-Level Interface of ‘torch’ Package to Auto-Train Neural Networks

Whether you’re generating neural network architectures expressions or fitting/training actual models, {kindling} minimizes boilerplate code while preserving {torch}. Since this package uses {torch} as its backend, GPU/TPU devices also supported.

{kindling} also bridges the gap between {torch} and {tidymodels}. It works seamlessly with {parsnip}, {recipes}, and {workflows} to bring deep learning into your existing {tidymodels} modeling pipeline. This enables a streamlined interface for building, training, and tuning deep learning models within the familiar {tidymodels} ecosystem.

Main Features

• Code generation of {torch} expression
• Multiple architectures available: feedforward networks (MLP/DNN/FFNN) and recurrent variants (RNN, LSTM, GRU)
• Native support for titanic ML frameworks (currently supports {tidymodels}, {mlr3} for later) workflows and pipelines
• Fine-grained control over network depth, layer sizes, and activation functions
• GPU acceleration supports via {torch} tensors

Supported Architectures (As of now)

• Feedforward Networks (DNN/FFNN): Classic multi-layer perceptrons for tabular data and general supervised learning
• Recurrent Neural Networks (RNN): Basic recurrent architecture for sequential patterns
• Long Short-Term Memory (LSTM): Sophisticated recurrent networks with gating mechanisms for long-range dependencies
• Gated Recurrent Units (GRU): Streamlined alternative to LSTM with fewer parameters

Installation

You can install {kindling} on CRAN:

install.packages('kindling')

Or install the development version from GitHub:

# install.packages("pak")
pak::pak("joshuamarie/kindling")
## devtools::install_github("joshuamarie/kindling")

Usage: Three Levels of Interaction

{kindling} is powered by R’s metaprogramming capabilities through code generation. Generated torch::nn_module() expressions power the training functions, which in turn serve as engines for {tidymodels} integration. This architecture gives you flexibility to work at whatever abstraction level suits your task.

library(kindling)
#>
#> Attaching package: 'kindling'
#> The following object is masked from 'package:base':
#>
#>     args

Before starting, you need to install LibTorch, the backend of PyTorch which also the backend of {torch} R package:

torch::install_torch()

Level 1: Code Generation for torch::nn_module

At the lowest level, you can generate raw torch::nn_module code for maximum customization. Functions ending with _generator return unevaluated expressions you can inspect, modify, or execute.

Here’s how to generate a feedforward network specification:

ffnn_generator(
    nn_name = "MyFFNN",
    hd_neurons = c(64, 32, 16),
    no_x = 10,
    no_y = 1,
    activations = 'relu'
)
#> torch::nn_module("MyFFNN", initialize = function ()
#> {
#>     self$fc1 = torch::nn_linear(10, 64, bias = TRUE)
#>     self$fc2 = torch::nn_linear(64, 32, bias = TRUE)
#>     self$fc3 = torch::nn_linear(32, 16, bias = TRUE)
#>     self$out = torch::nn_linear(16, 1, bias = TRUE)
#> }, forward = function (x)
#> {
#>     x = self$fc1(x)
#>     x = torch::nnf_relu(x)
#>     x = self$fc2(x)
#>     x = torch::nnf_relu(x)
#>     x = self$fc3(x)
#>     x = torch::nnf_relu(x)
#>     x = self$out(x)
#>     x
#> })

This creates a three-hidden-layer network (64 - 32 - 16 neurons) that takes 10 inputs and produces 1 output. Each hidden layer uses ReLU activation, while the output layer remains “untransformed”.

Level 2: Direct Training Interface

Skip the code generation and train models directly with your data. This approach handles all the {torch} boilerplate when training the models internally.

Let’s classify iris species:

model = ffnn(
    Species ~ .,
    data = iris,
    hidden_neurons = c(10, 15, 7),
    activations = act_funs(relu, softshrink = args(lambd = 0.5), elu),
    loss = "cross_entropy",
    epochs = 100
)

model

======================= Feedforward Neural Networks (MLP) ======================


-- FFNN Model Summary ----------------------------------------------------------

    -----------------------------------------------------------------------
      NN Model Type           :             FFNN    n_predictors :      4
      Number of Epochs        :              100    n_response   :      3
      Hidden Layer Units      :        10, 15, 7    reg.         :   None
      Number of Hidden Layers :                3    Device       :    cpu
      Pred. Type              :   classification                 :
    -----------------------------------------------------------------------



-- Activation function ---------------------------------------------------------

               -------------------------------------------------
                 1st Layer {10}    :                      relu
                 2nd Layer {15}    :   softshrink(lambd = 0.5)
                 3rd Layer {7}     :                       elu
                 Output Activation :   No act function applied
               -------------------------------------------------

Evaluate the prediction through predict(). The predict() method is extended for fitted models through its newdata argument.

Two kinds of predict() usage:

1. Without newdata predictions is the default to the parent data frame.

   predict(model) |>
       (\(x) table(actual = iris$Species, predicted = x))()
   #>             predicted
   #> actual       setosa versicolor virginica
   #>   setosa         50          0         0
   #>   versicolor      0         46         4
   #>   virginica       0          2        48

2. With newdata simply pass the new data frame as the new reference.

   sample_iris = dplyr::slice_sample(iris, n = 10, by = Species)

   predict(model, newdata = sample_iris) |>
       (\(x) table(actual = sample_iris$Species, predicted = x))()
   #>             predicted
   #> actual       setosa versicolor virginica
   #>   setosa         10          0         0
   #>   versicolor      0         10         0
   #>   virginica       0          1         9

Level 3: Conventional tidymodels Integration

Work with neural networks just like any other {parsnip} model. This unlocks the entire {tidymodels} toolkit for preprocessing, cross-validation, and model evaluation.

# library(kindling)
# library(parsnip)
# library(yardstick)
box::use(
    kindling[mlp_kindling, rnn_kindling, act_funs, args],
    parsnip[fit, augment],
    yardstick[metrics],
    mlbench[Ionosphere] # data(Ionosphere, package = "mlbench")
)

ionosphere_data = Ionosphere[, -2]

# Train a feedforward network with parsnip
mlp_kindling(
    mode = "classification",
    hidden_neurons = c(128, 64),
    activations = act_funs(relu, softshrink = args(lambd = 0.5)),
    epochs = 100
) |>
    fit(Class ~ ., data = ionosphere_data) |>
    augment(new_data = ionosphere_data) |>
    metrics(truth = Class, estimate = .pred_class)
#> # A tibble: 2 × 3
#>   .metric  .estimator .estimate
#>   <chr>    <chr>          <dbl>
#> 1 accuracy binary         0.989
#> 2 kap      binary         0.975

# Or try a recurrent architecture (demonstrative example with tabular data)
rnn_kindling(
    mode = "classification",
    hidden_neurons = c(128, 64),
    activations = act_funs(relu, elu),
    epochs = 100,
    rnn_type = "gru"
) |>
    fit(Class ~ ., data = ionosphere_data) |>
    augment(new_data = ionosphere_data) |>
    metrics(truth = Class, estimate = .pred_class)
#> # A tibble: 2 × 3
#>   .metric  .estimator .estimate
#>   <chr>    <chr>          <dbl>
#> 1 accuracy binary         0.641
#> 2 kap      binary         0

Hyperparameter Tuning & Resampling

The package has integration with {tidymodels}, so it supports hyperparameter tuning via {tune} with searchable parameters.

The current searchable parameters under {kindling}:

• Layer widths (neurons per layer)
• Network depth (number of hidden layers)
• Activation function combinations
• Output activation
• Optimizer (Type of optimization algorithm)
• Bias (choose between the presence and the absence of the bias term)
• Validation Split Proportion
• Bidirectional (boolean; only for RNN)

The searchable parameters outside from {kindling}, i.e. under {dials} package such as learn_rate() also supported.

Here’s an example:

# library(tidymodels)
box::use(
    kindling[
        mlp_kindling, hidden_neurons, activations, output_activation, grid_depth
    ],
    parsnip[fit, augment],
    recipes[recipe],
    workflows[workflow, add_recipe, add_model],
    rsample[vfold_cv],
    tune[tune_grid, tune, select_best, finalize_workflow],
    dials[grid_random],
    yardstick[accuracy, roc_auc, metric_set, metrics]
)

mlp_tune_spec = mlp_kindling(
    mode = "classification",
    hidden_neurons = tune(),
    activations = tune(),
    output_activation = tune()
)

iris_folds = vfold_cv(iris, v = 3)
nn_wf = workflow() |>
    add_recipe(recipe(Species ~ ., data = iris)) |>
    add_model(mlp_tune_spec)

nn_grid_depth = grid_depth(
    hidden_neurons(c(32L, 128L)),
    activations(c("relu", "elu")),
    output_activation(c("sigmoid", "linear")),
    n_hlayer = 2,
    size = 10,
    type = "latin_hypercube"
)

# This is supported but limited to 1 hidden layer only
## nn_grid = grid_random(
##     hidden_neurons(c(32L, 128L)),
##     activations(c("relu", "elu")),
##     output_activation(c("sigmoid", "linear")),
##     size = 10
## )

nn_tunes = tune::tune_grid(
    nn_wf,
    iris_folds,
    grid = nn_grid_depth
    # metrics = metric_set(accuracy, roc_auc)
)

best_nn = select_best(nn_tunes)
final_nn = finalize_workflow(nn_wf, best_nn)
# Last run: 4 - 91 (relu) - 3 (sigmoid) units
final_nn_model = fit(final_nn, data = iris)

final_nn_model |>
    augment(new_data = iris) |>
    metrics(truth = Species, estimate = .pred_class)
#> # A tibble: 2 × 3
#>   .metric  .estimator .estimate
#>   <chr>    <chr>          <dbl>
#> 1 accuracy multiclass     0.667
#> 2 kap      multiclass     0.5

Resampling strategies from {rsample} will enable robust cross-validation workflows, orchestrated through the {tune} and {dials} APIs.

Variable Importance

{kindling} integrates with established variable importance methods from {NeuralNetTools} and {vip} to interpret trained neural networks. Two primary algorithms are available:

1. Garson’s Algorithm

   garson(model, bar_plot = FALSE)
   #>        x_names y_names  rel_imp
   #> 1  Sepal.Width       y 29.04598
   #> 2  Petal.Width       y 27.50590
   #> 3 Sepal.Length       y 24.20982
   #> 4 Petal.Length       y 19.23830

2. Olden’s Algorithm

   olden(model, bar_plot = FALSE)
   #>        x_names y_names     rel_imp
   #> 1  Sepal.Width       y  0.56231712
   #> 2  Petal.Width       y -0.51113650
   #> 3 Petal.Length       y -0.29761552
   #> 4 Sepal.Length       y -0.06857191

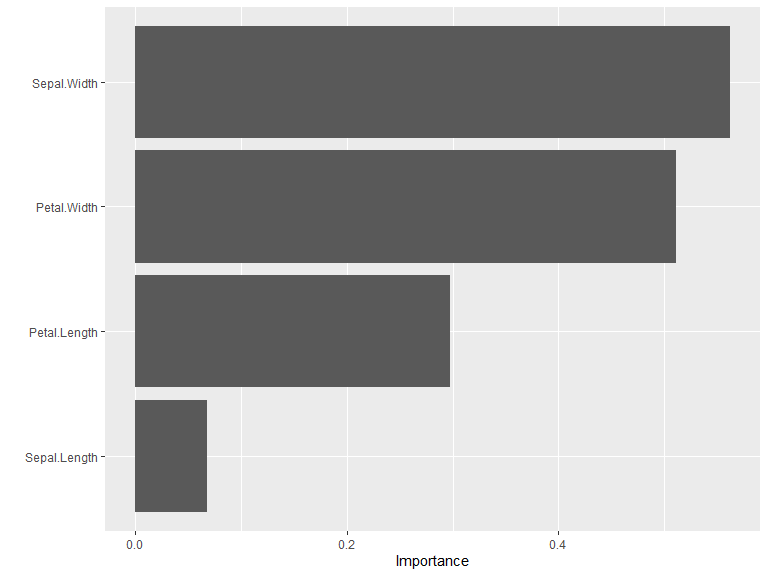

Integration with {vip}

For users working within the {tidymodels} ecosystem, {kindling} models work seamlessly with the {vip} package:

box::use(
    vip[vi, vip]
)

vi(model) |>
    vip()

Note: Weight caching increases memory usage proportional to network size. Only enable it when you plan to compute variable importance multiple times on the same model.

References

Falbel D, Luraschi J (2023). torch: Tensors and Neural Networks with ‘GPU’ Acceleration. R package version 0.13.0, https://torch.mlverse.org, https://github.com/mlverse/torch.

Wickham H (2019). Advanced R, 2nd edition. Chapman and Hall/CRC. ISBN 978-0815384571, https://adv-r.hadley.nz/.

Goodfellow I, Bengio Y, Courville A (2016). Deep Learning. MIT Press. https://www.deeplearningbook.org/.

License

MIT + file LICENSE

Code of Conduct

Please note that the kindling project is released with a Contributor Code of Conduct. By contributing to this project, you agree to abide by its terms.
